Understanding Lab Module Design
Lab module design refers to standardized room dimensions (width, depth, ceiling height, and hallway size) that ensure:
- Efficient workflows
- Safe equipment placement
- Global compatibility
1. Lab Width Standards
Global Practices
| Country | Standard Width | Key Features |
|---|---|---|
| Germany | 10-11.5 ft (3-3.5m) | Prefab wall systems |
| USA | 10 ft (3.05m) | Double/triple modules |
| Japan | 10.5 ft (3.2m)https://labworkbenchs.com/lab-benches-with-shelves/ | 5.25 ft (1.6m) subunits |
| China | 9.8-11.8 ft (3-3.6m) | Fits most workstations |

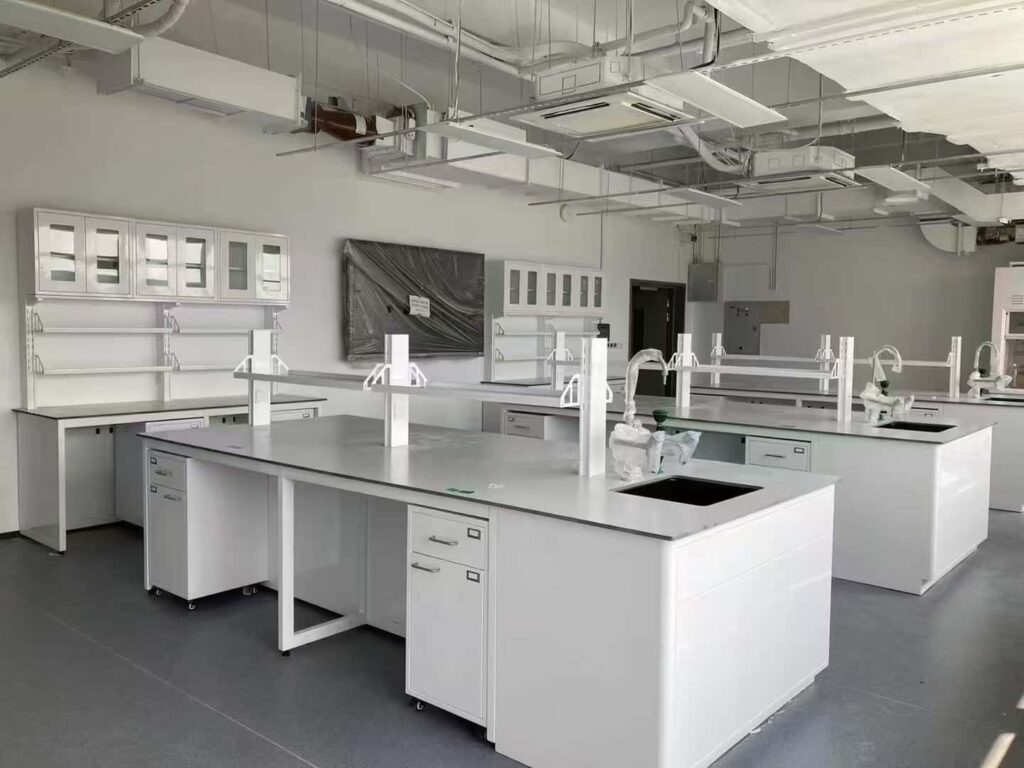

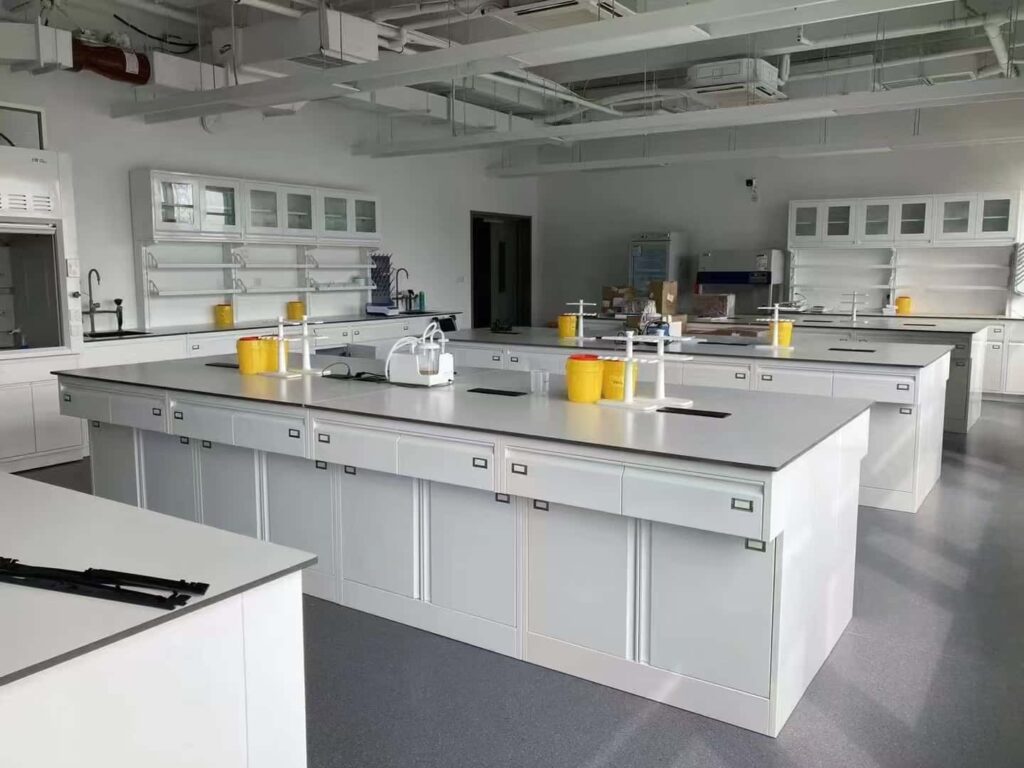

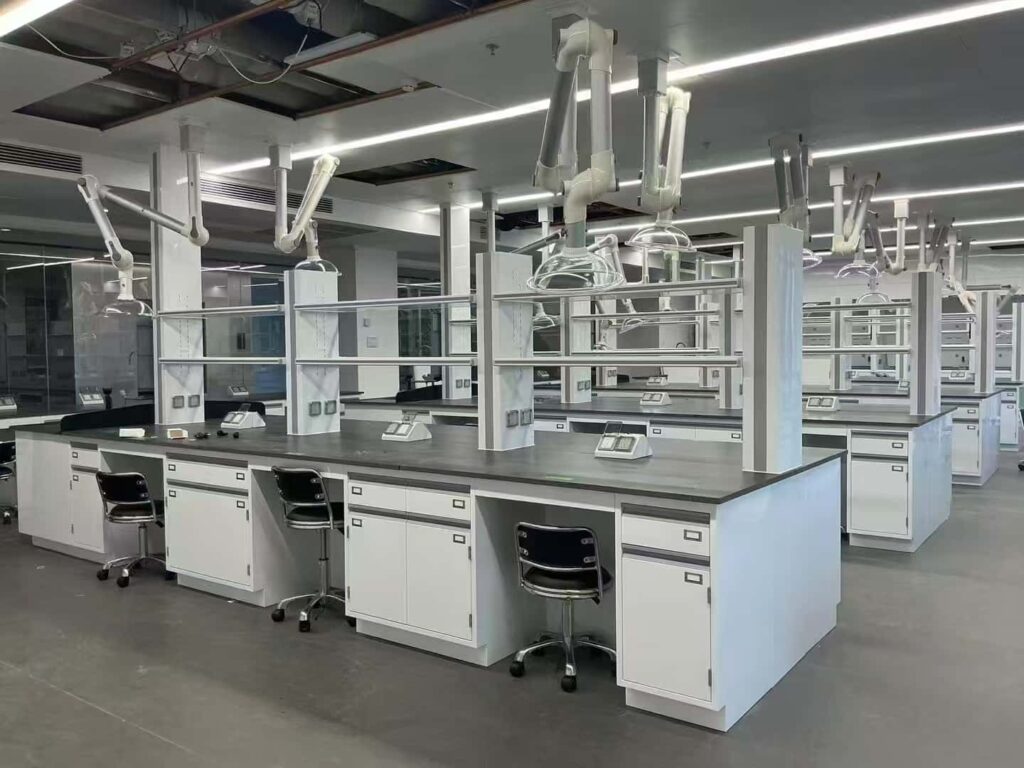

Lab Bench Layout
- Workstation: 4-6 ft (1.2-1.8m) wide

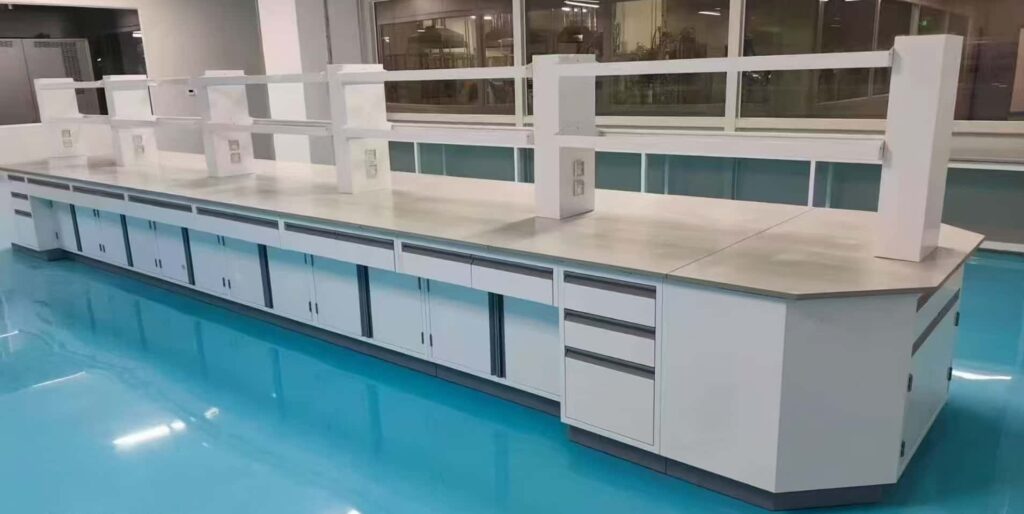

- Wall-side lab workbenches: 2-3 ft (0.6-0.9m) wide
- Aisle space: 4-6 ft (1.2-1.8m) between stations
Design Tip: Match widths with industrial building parts (e.g., 6m columns) for easier construction.
2. Lab Depth Guidelines
Recommended Depths
| Lab Type | Depth Range |
|---|---|
| Chemistry | 20-23 ft (6-7m) |
| Biology | 23-26 ft (7-8m) |
| Physics | 26-30 ft (8-9m) |
5 Key Factors:
- Number of researchers per bench

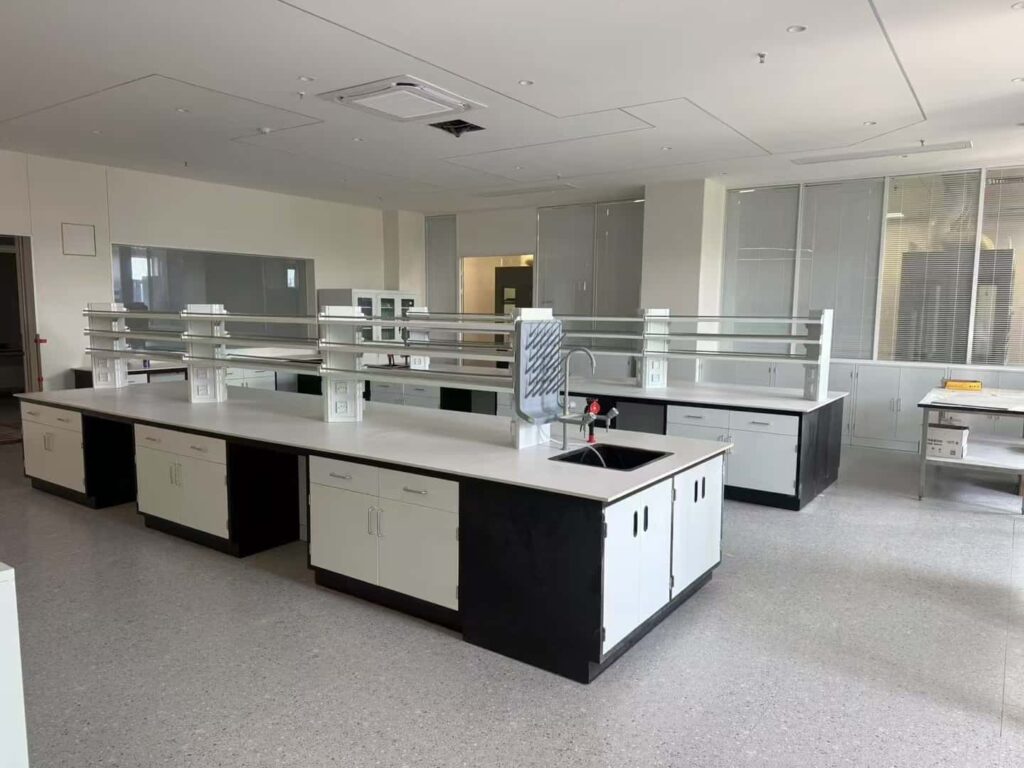

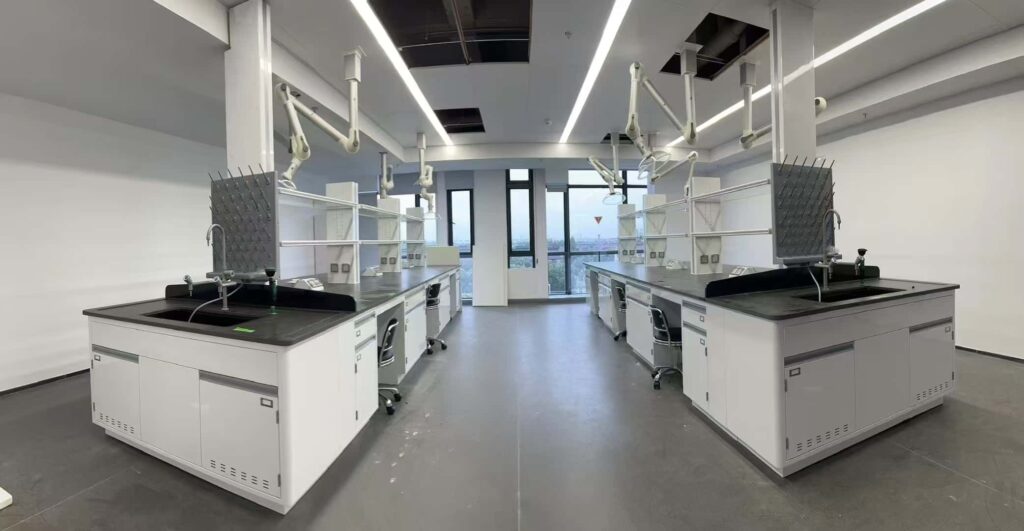

- Island vs. peninsula layouts (islands need 10% more space)
- Office areas near workstations
- Fume hood orientation (parallel to windows saves space)
- Natural vs. artificial lighting
3. Ceiling Height Rules
| Lab Type | Minimum Height | Key Features |
|---|---|---|
| General Chemistry | 12 ft (3.6m) | Fume hood duct space |
| Clean Rooms | 8.2 ft (2.5m) | Energy-saving low ceilings |
| Computer Labs | 8-10 ft (2.4-3m) | Cable management space |
Special Cases:
- Nuclear Labs: 13-14 ft (4-4.2m) for radiation filters
- Underground Labs: Add 6-12 inches (15-30cm) for pipes
4. Hallway Design
Width Requirements
| Hall Type | Minimum Width | Purpose |
|---|---|---|
| Main Corridor | 6 ft (1.8m) | Equipment transport |
| Emergency Exit | 4 ft (1.2m) | Fast evacuation |
| Service Tunnel | 6.5-9 ft (2-2.8m) | Pipe/duct access |
Pro Tips:
- Install ceiling hooks every 10 ft (3m) for emergency signage
- Use anti-slip flooring near wet labs
5. Door/Window Specifications
Door Standards
| Lab Type | Door Type | Width | Swing Direction |
|---|---|---|---|
| General Use | Single | 3.3 ft (1m) | Inward |
| Hazardous | Double | 4 ft (1.2m) | Outward |
| Soundproof | Reinforced | 3.3 ft (1m) | Both directions |
Window Guidelines:
- Sill height: 3.3 ft (1m) minimum
- Glass type: Laminated safety glass
- Shading: Install UV-blocking film
Cost-Saving Strategies
- Modular Design
- Use prefab walls (saves 15% construction time)
- Standardize window sizes
- Energy Efficiency
- Install motion-activated lights (cuts energy use by 30%)
- Use insulated glass units (IGU) for temperature control
Safety Checklist
- Mark floor zones with colored tape:
- Red = No storage area
- Yellow = Emergency equipment access
- Test door swings with full equipment carts
- Install emergency lighting every 50 ft (15m)
Complies with ISO 14644 and ANSI/ASSP Z9.5 standards.
Key Data Summary:
| Feature | Chemistry Lab | Biology Lab | Physics Lab |
|---|---|---|---|
| Width | 11.8 ft (3.6m) | 10 ft (3m) | 11.8 ft (3.6m) |
| Depth | 23 ft (7m) | 26 ft (8m) | 30 ft (9m) |
| Ceiling | 12 ft (3.6m) | 12 ft (3.6m) | 13 ft (4m) |
This guide simplifies complex lab design concepts into actionable standards for global teams.
