In any laboratory, the laboratory workbench serves as the central platform for experimental operations. The material properties of the lab worktop directly determine the safety, durability, and operational convenience of experiments.
Among numerous countertop materials, epoxy resin countertops have become the mainstream choice for laboratories worldwide due to their outstanding comprehensive performance.
This article will provide an in-depth exploration of epoxy resin countertop manufacturing processes, performance characteristics, suitable applications, and maintenance methods, helping you make a more informed decision when selecting laboratory workbenches.

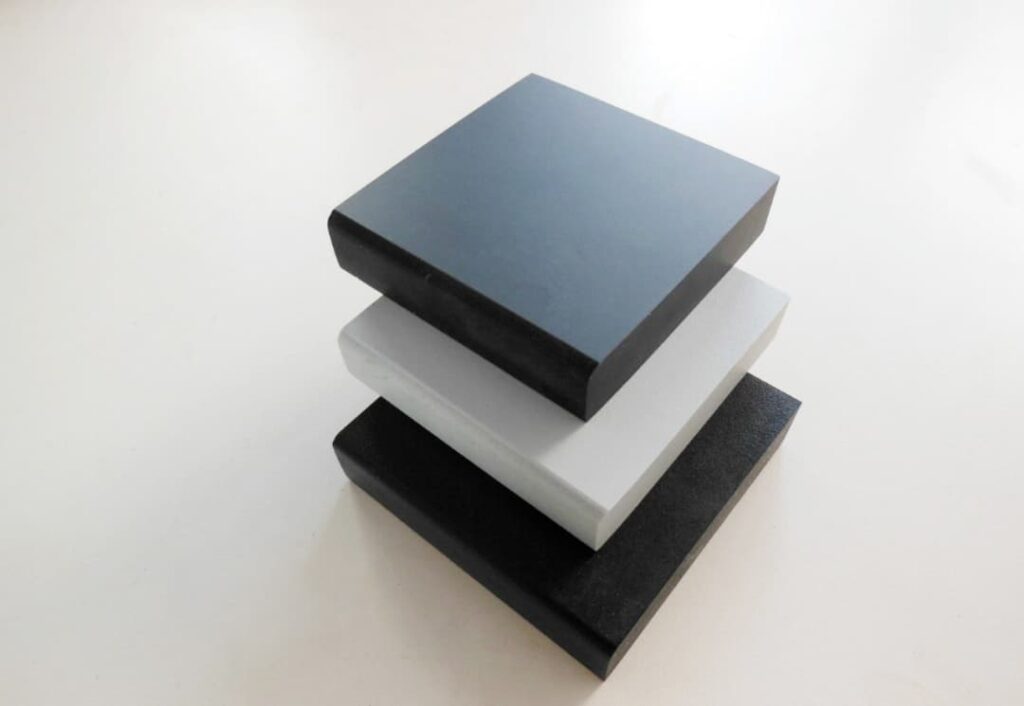

What is an epoxy resin countertop?
Epoxy resin countertops originated in the 1960s. They are manufactured by mixing epoxy resin, quartz sand, curing agents, pigments, and other materials, then cast into shape and cured at high temperatures.
The process resembles that of unsaturated polyester resin, but its chemical structure is closer to epoxy resin. Consequently, it inherits epoxy resin’s chemical stability, heat resistance, and superior mechanical properties.
Today, epoxy resin countertops rank among the most versatile laboratory workbench surface materials on the market. Their value becomes increasingly evident in the most demanding and complex experimental environments.
Certification Standards for Epoxy Resin Countertops
To ensure quality and safety, premium epoxy resin countertops typically undergo multiple international certifications, including:
- American Scientific Equipment and Furniture Association (SEFA) Standards
- British NNC Radiation Assessment Center BS4247 Testing
- American Society for Testing and Materials (ASTM) Standards
- National Sanitation Foundation (NSF) Standards
- China National Chemical Building Materials Testing Center Certification
These certifications provide reliable assurance for their widespread application in laboratories worldwide.
Composition and Manufacturing Process
Epoxy resin countertops are made by mixing epoxy resin with quartz sand, catalysts, curing agents, and pigments. The mixture is cast in a single pour and then cured at a low temperature of approximately 200°C.
Key features of the manufacturing process include:
The water-blocking edge is integrally molded with the countertop body, effectively preventing liquid spills and significantly enhancing safety during laboratory operations.
Common Specifications:
Dimensions: 3000×1500mm (118×59 in)
Thickness: 16mm(0.6in), 19mm(0.7in), 25mm(1in)
Surface Finish: Textured, Matte
Color Options: Jet Black, Cream White, Orange Yellow, Light Yellow, Light Gray, Light Blue, Dark Green, etc.
Performance Characteristics of Epoxy Resin Countertops
1. Exceptional Heat Resistance
Epoxy resin countertops can withstand direct contact with 800°C crucibles, without bubbling or cracking.
They do not burn when exposed to open flames.
demonstrating outstanding high-temperature tolerance.
2. Superior Corrosion Resistance
As an inert material, it exhibits excellent resistance to most chemical reagents.
They demonstrate outstanding performance in 24-hour chemical endurance tests, significantly outperforming many traditional materials.
3. Seamless Joining Technology
The countertop is uniform throughout.
utilizing seamless joining techniques, to ensure no joints, no harboring of dirt, and no bacterial growth.
The surface is smooth, moisture-resistant, and easy to clean.
4. Durable and Repairable
Solid-core construction with no pores, can be sanded and repaired to restore like-new condition.
Long service life, resists delamination, swelling, and cracking.
5. Eco-Friendly and Safe
Asbestos-free, non-conductive, non-combustible, emits no toxic fumes when heated.
ensuring laboratory personnel health and safety.
6. Stain-Resistant and Antibacterial
Smooth, non-porous surface, prevents dirt accumulation.
and effectively inhibits bacterial and viral growth (e.g., SARS virus).
7. Color Stability & Variety
Offers multiple color options, with consistent color matching across batches.
suitable for aesthetically demanding lab environments.
8. Transport & Installation Efficiency
Relatively lightweight material, facilitates long-distance shipping and on-site installation.
Suitable Scenarios: Which Laboratories Are Ideal for Epoxy Resin Countertops?
Epoxy resin countertops are most widely used in chemical laboratories, suitable for nearly all areas exposed to chemical reagents:
1. Chemical Laboratories
- Organic/Inorganic Chemistry Labs: Resistant to strong acids, strong alkalis, and organic solvents (e.g., acetone, ethanol, phenol).
- Analytical Testing Labs: Provides reliable corrosion protection during titration, digestion, and similar processes.
- Synthetic Chemistry Labs: Suitable for complex chemical environments like drug synthesis and material synthesis.
2. Biological and Life Science Labs
Although stainless steel is more common in certain sterile areas, epoxy resin countertops perform equally well in this field.
- Biochemistry Labs: Resistant to buffers, dyes, and biochemical reagents.
- Molecular Biology Labs: Suitable for PCR, electrophoresis, nucleic acid extraction, and related experiments.
- Pathology/Hematology Labs: Resistant to disinfectants and biological stains.
3. Industrial R&D and Quality Control Laboratories
- Petrochemical Laboratories: Resistant to petroleum products, lubricants, and related chemicals.
- Pharmaceutical Laboratories: GMP-compliant, easy-to-clean, corrosion-resistant.
- Food & Beverage Laboratories: Resistant to food acids and dyes, seamless antimicrobial properties.
- Materials Science Laboratories: Withstands diverse chemical testing environments.
4. Educational and Research Institutions
- University Teaching Labs: Frequent student experiments, common reagent spills; epoxy resin offers durability and corrosion resistance.
- Research Institute Shared Platforms: Multiple users, diverse experiments; requires “all-purpose” countertops.
Maintenance Methods for Epoxy Resin Countertops
Proper maintenance extends the lifespan of laboratory workbenches:
- Daily Cleaning: Wipe the countertop with 70% ethanol solution.
- Stain Removal: Treat stubborn stains with a damp cloth or household cleaner. Avoid abrasive cleaners and never apply wax.
- Oil Stains and Scratches: Wipe with a cloth soaked in naphtha or solvent.
- Periodic Maintenance: Clean and polish with paper towels or a clean cloth. A gloss enhancer may also be applied.
- Restoring Luster: Wipe the surface with an oil-soaked cloth, then dry thoroughly with a clean cloth.
Summary: Epoxy Resin Countertops—The Ideal Choice for Laboratory Workstations
In summary, epoxy resin countertops have become an indispensable material in modern laboratories due to their exceptional chemical resistance, high-temperature tolerance, seamless construction, environmental safety, and extended service life.
Whether you are constructing a new laboratory or upgrading existing lab workbench, choosing epoxy resin countertops means choosing safety, durability, and efficiency.
